Strip Test Database
STRIP47 – Bandpass characterization Tambient (PS0101 - PWR3 blind)
General information
| Polarimeter | STRIP47 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS0101 - PWR3 blind) |
| PHSW state | 0101 |
| Notes | The source data file was «SCI170321_115508 - Qband47_Tamb_RF -15dBm_0101_caso base_21March17.txt» (383 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (78.2 KB)
ADC offsets

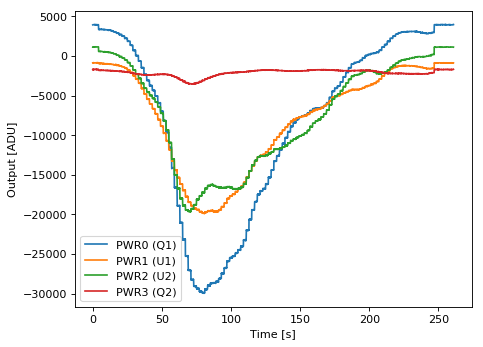

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.7 | 5.5 | 20.0 |
| H1 (HB1) | 0.7 | 6.5 | -260.0 |
| H2 (HA2) | 0.7 | 5.7 | 200.0 |
| H3 (HB2) | 0.7 | 5.8 | 260.0 |
| H4 (HA3) | 0.7 | 6.8 | 0.0 |
| H5 (HB3) | 0.6 | 8.0 | -260.0 |
