STRIP52 – Bandpass characterization Tambient (PS1010 - PWR3 blind)
General information
| Polarimeter | STRIP52 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS1010 - PWR3 blind) |
| PHSW state | 1010 |
| Notes | The source data file was «SCI170209_003211 - Quiet00_Tamb_RF -10dBm_1010_ decrease leg odd -40mV H5 (from +140 to +100mV)_08Feb17.txt» (353 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (73.2 KB)
ADC offsets

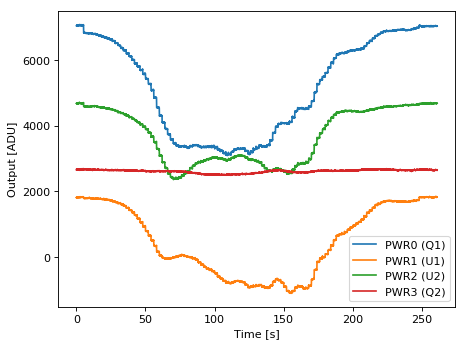

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.7 | 7.4 | -120.0 |
| H1 (HB1) | 0.7 | 7.4 | -120.0 |
| H2 (HA2) | 0.6 | 7.4 | -240.0 |
| H3 (HB2) | 0.6 | 7.8 | -180.0 |
| H4 (HA3) | 0.6 | 7.7 | -60.0 |
| H5 (HB3) | 0.6 | 5.5 | 100.0 |
