STRIP58 – Bandpass characterization Tambient (PS1001 - PWR0 blind)
General information
| Polarimeter | STRIP58 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS1001 - PWR0 blind) |
| PHSW state | 1001 |
| Notes | The source data file was «SCI170211_010018 - Quiet06_Tamb_RF -10dBm_1001_ + leg odd +40mV H3 (from -40 to 0)_10Feb17.txt» (356 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (77.3 KB)
ADC offsets

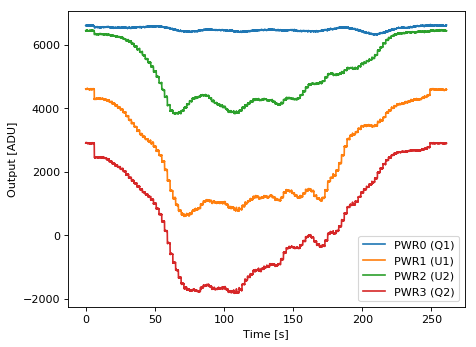

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.7 | 7.8 | 145.0 |
| H1 (HB1) | 0.6 | 7.5 | 20.0 |
| H2 (HA2) | 0.7 | 6.6 | 70.0 |
| H3 (HB2) | 0.7 | 8.14 | 0.0 |
| H4 (HA3) | 0.7 | 7.5 | 160.0 |
| H5 (HB3) | 0.7 | 6.8 | 240.0 |
