STRIP02 – Bandpass characterization

General information

Edit  Delete

Polarimeter STRIP02
Acquisition date
BandQ
Cryogenic?Yes
OperatorsPaola Battaglia, Claudio Pincella
PHSW state0101
Notes

The source data file was «SCI171011_094844 - STRIP02_Tcryo20K_RF_-40dBm_0101_11Oct2017.txt» (378 kB)

Authorsilvia
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1837 1751 1796 1824 Edit  Delete

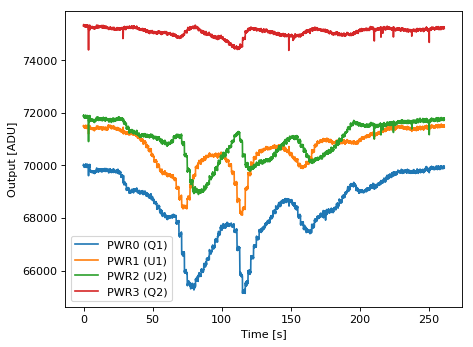

Detector outputs
PWR0 PWR1 PWR2 PWR3
86900 88780 89760 89120 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 4.0 220.0
H1 (HB1) 0.9 4.0 300.0
H2 (HA2) 0.9 6.0 256.0
H3 (HB2) 0.9 4.5 267.0
H4 (HA3) 0.9 6.0 123.0
H5 (HB3) 0.9 3.4 204.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.39±0.13 7.53±0.39 JSON Download Edit  Delete
Spectrum
