Strip Test Database

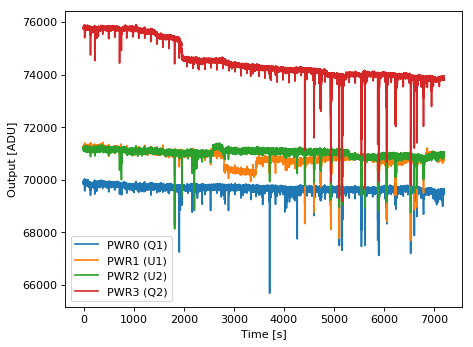

STRIP02 – Long acquisition
General information
| Polarimeter | STRIP02 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Paola Battaglia, Claudio Pincella |
| PHSW state | switching |
| Notes | The source data file was «SCI171011_102050 - STRIP02_1_f__PS-default_2hours_11Oct2017.txt» (11279 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (1.9 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.0 | 220.0 |
| H1 (HB1) | 0.9 | 4.0 | 300.0 |
| H2 (HA2) | 0.9 | 6.0 | 256.0 |
| H3 (HB2) | 0.9 | 4.5 | 267.0 |
| H4 (HA3) | 0.9 | 6.0 | 123.0 |
| H5 (HB3) | 0.9 | 3.4 | 204.0 |
