Strip Test Database

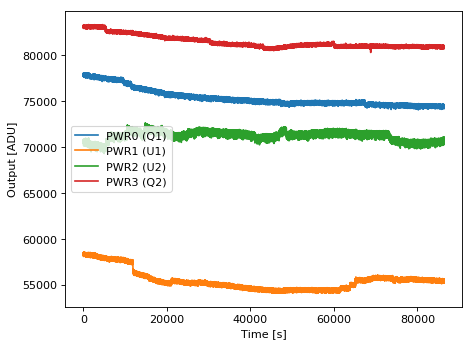

STRIP35 – Long acquisition
General information
| Polarimeter | STRIP35 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Paola Battaglia, Claudio Pincella |
| PHSW state | switching |
| Notes | The source data file was «SCI171122_152817 - STRIP35_1_f__PS-default_24hours_22Nov2017.txt» (145274 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (21.8 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 6.15 | 148.0 |
| H1 (HB1) | 0.9 | 5.9 | 48.0 |
| H2 (HA2) | 0.9 | 5.9 | 461.0 |
| H3 (HB2) | 0.9 | 2.0 | 362.0 |
| H4 (HA3) | 0.9 | 9.34 | -200.0 |
| H5 (HB3) | 0.9 | 6.87 | 202.0 |
