Strip Test Database

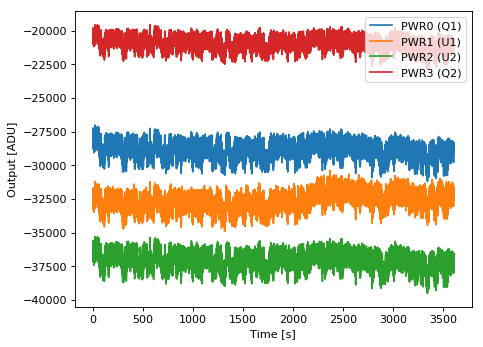

STRIP61 – Long acquisition
General information
| Polarimeter | STRIP61 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Paola Battaglia, Mario Zannoni |
| PHSW state | switching |
| Notes | The source data file was «SCI170711_161528 - STRIP61_1_f__PS-default_JPL polariz_11Jul2017.txt» (6830 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (1.2 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 3.02 | 185.0 |
| H1 (HB1) | 0.9 | 3.1 | 341.0 |
| H2 (HA2) | 1.21 | 9.94 | 428.0 |
| H3 (HB2) | 1.21 | 12.01 | 504.0 |
| H4 (HA3) | 0.95 | 6.94 | 453.0 |
| H5 (HB3) | 0.92 | 8.03 | 181.0 |
