Strip Test Database

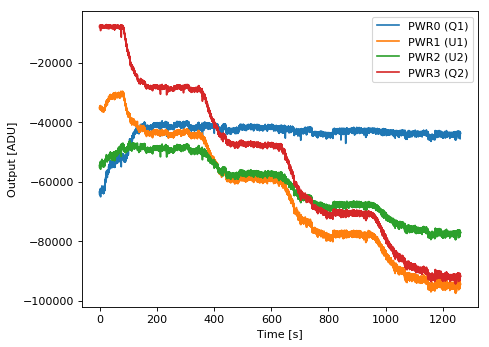

STRIP61 – Y-factor test
General information
| Polarimeter | STRIP61 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Paola Battaglia, Mario Zannoni |
| PHSW state | 0101 |
| Notes | The source data file was «SCI170711_152454 - STRIP61_Y-Factor_LB_20K_up_10-20-30-40-50_PS0101_11Jul2017.txt» (1996 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (424.3 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 3.02 | 185.0 |
| H1 (HB1) | 0.9 | 3.1 | 341.0 |
| H2 (HA2) | 1.21 | 9.94 | 428.0 |
| H3 (HB2) | 1.21 | 12.01 | 504.0 |
| H4 (HA3) | 0.95 | 6.94 | 453.0 |
| H5 (HB3) | 0.92 | 8.03 | 181.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.4 | 10.0 | 13.2 | 20.0 | 16.2 | 15.0 | 24.9 |
|
| 20.0 | 25.3 | 20.0 | 26.9 | 20.0 | 16.2 | 15.0 | 24.9 |
|
| 20.0 | 25.3 | 30.0 | 36.1 | 20.0 | 16.2 | 15.0 | 24.9 |
|
| 20.0 | 25.3 | 40.0 | 47.9 | 20.0 | 16.2 | 15.0 | 24.9 |
|
| 20.0 | 25.3 | 50.0 | 58.8 | 20.0 | 16.2 | 15.0 | 24.9 |
|
