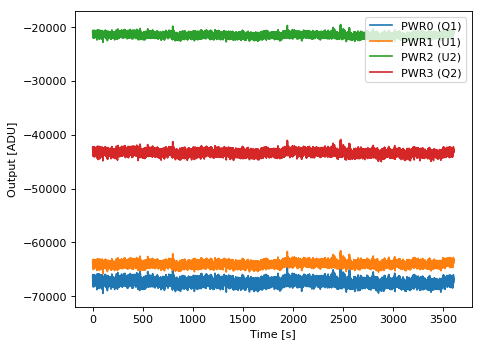

STRIP66 – Long acquisition
General information
| Polarimeter | STRIP66 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Paola Battaglia, Mario Zannoni |
| PHSW state | switching |
| Notes | The source data file was «SCI170720_152204 - STRIP66_1_f__PS-default_JPL polariz_20Jul2017.txt» (6479 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (1.1 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.92 | 3.07 | 343.0 |
| H1 (HB1) | 0.91 | 5.37 | 419.0 |
| H2 (HA2) | 1.21 | 15.21 | -108.0 |
| H3 (HB2) | 1.21 | 15.68 | 528.0 |
| H4 (HA3) | 0.91 | 8.16 | 240.0 |
| H5 (HB3) | 0.93 | 10.18 | 283.0 |
