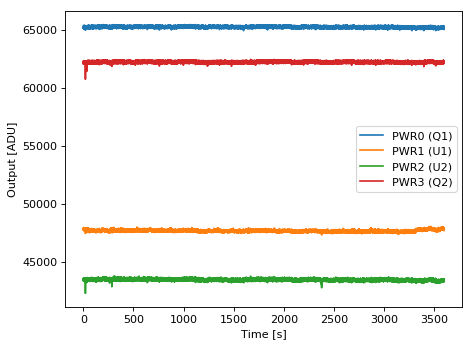

STRIP68 – Long acquisition
General information
| Polarimeter | STRIP68 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Paola Battaglia, Mario Zannoni |
| PHSW state | switching |
| Notes | The source data file was «SCI170703_130834 - STRIP68_1_f__PS-default_JPL polariz_03Jul2017.txt» (6303 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (948.6 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.91 | 3.16 | 307.0 |
| H1 (HB1) | 0.91 | 3.16 | 331.0 |
| H2 (HA2) | 1.21 | 12.16 | 9.0 |
| H3 (HB2) | 1.21 | 11.08 | -56.0 |
| H4 (HA3) | 0.91 | 9.3 | 245.0 |
| H5 (HB3) | 0.93 | 8.4 | 374.0 |
