STRIP68 – Y-factor test

General information

Edit  Delete

Polarimeter STRIP68
Acquisition date
BandQ
Cryogenic?Yes
OperatorsPaola Battaglia, Mario Zannoni
PHSW state0101
Notes

The source data file was «SCI170703_121932 - STRIP68_Y-Factor_LB_20K_up_10-20-30-40-50_PS0101_03Jul2017.txt» (1868 kB)

Authorsilvia
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1990 1937 1968 1890 Edit  Delete

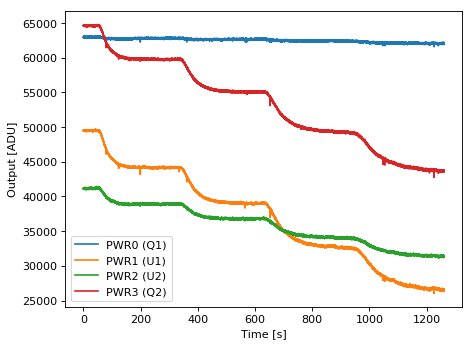

Detector outputs
PWR0 PWR1 PWR2 PWR3
87700 85200 87400 88000 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.91 3.16 307.0
H1 (HB1) 0.91 3.16 331.0
H2 (HA2) 1.21 12.16 9.0
H3 (HB2) 1.21 11.08 -56.0
H4 (HA3) 0.91 9.3 245.0
H5 (HB3) 0.93 8.4 374.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 25.6 10.0 14.5 20.0 16.3 15.0 24.7 Edit  Delete
20.0 25.5 20.0 27.9 20.0 16.3 15.0 24.7 Edit  Delete
20.0 25.5 30.0 36.8 20.0 16.3 15.0 24.6 Edit  Delete
20.0 25.5 40.0 48.5 20.0 16.3 15.0 24.6 Edit  Delete
20.0 25.5 50.0 59.3 20.0 16.3 15.0 24.6 Edit  Delete

Reports

Noise temperatures
Method Tnoise [K] GQ1 [ADU/K] GU1 [ADU/K] GU2 [ADU/K] GQ2 [ADU/K] Details Report Action
non-linear fit 30.9±5.7 447±85 803±85 901±93 532±92 JSON Download Edit  Delete
Bandpasses
Spectrum
