STRIP25 – Bandpass characterization Tcryo (PS0101 - PWR3 blind)

General information

Edit  Delete

Polarimeter STRIP25
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization Tcryo (PS0101 - PWR3 blind)
PHSW state0101
Notes

The source data file was «SCI180119_112415 - STRIP25_Tcryo20K_RF_-40dBm_0101_V4_19Jan2018.txt» (444 kB)

A lot of attempts have been carried, but it has not been possible to get a reasonable leg balance and a good gain. In the following the best result is presented, so called variant “V4”.

In practice, there is no balance at all and the gain is hardly sufficient. This case has been retained for the next Y-Factor tests.

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1823 1794 1764 1805 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
102800 102900 104000 100950 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 5.38 279.0
H1 (HB1) 0.9 3.0 329.0
H2 (HA2) 0.9 7.09 552.0
H3 (HB2) 0.9 2.22 237.0
H4 (HA3) 0.9 7.05 399.0
H5 (HB3) 0.9 6.34 259.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.43±0.06 6.99±0.19 JSON Download Edit  Delete

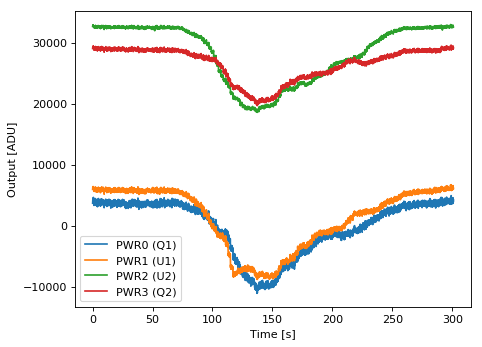

Spectrum
