Strip Test Database

STRIP20 – Bandpass characterization Tcryo (PS0101 - PWR3 blind)

General information

Edit  Delete

Polarimeter STRIP20
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization Tcryo (PS0101 - PWR3 blind)
PHSW state0101
Notes

The source data file was «SCI180122_133436 - STRIP20_Tcryo20K_RF_-40dBm_0101_V3_22Jan2018.txt» (467 kB)

We did not succeed to find polarization settings allowing both an acceptable balance and a reasonable gain. However, no problem of interactions among the HEMTs and the Keithley points were always respected.
The polarization settings relevant to the so called case “V3” is presented, used for this RF test and also for the Y-Factor tests.

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1844 1817 1853 1793 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
103420 100930 100210 99210 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 5.0 172.0
H1 (HB1) 0.9 4.05 597.0
H2 (HA2) 0.9 6.6 602.0
H3 (HB2) 0.9 8.76 251.0
H4 (HA3) 0.9 7.8 61.0
H5 (HB3) 0.9 9.48 194.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
42.93±0.22 6.09±0.45 JSON Download Edit  Delete

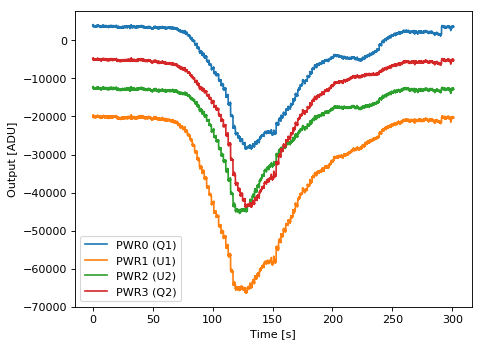

Spectrum
