Strip Test Database
STRIP40 – Bandpass characterization
General information
| Polarimeter | STRIP40 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federico Incardona |
| PHSW state | 0101 |
| Notes | The source data file was «SCI180202_161645 - STRIP40_Tcryo20K_RF_-40dBm_0101_02Feb2018_selected.txt» (449 kB) |
| Author | fincardona |
| Date of creation | |
| JSON record | Link |
- Download data file (103.2 KB)

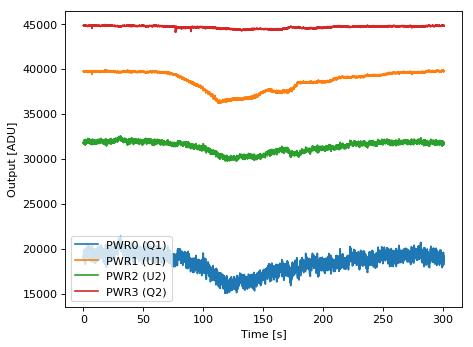

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.6 | -340.0 |
| H1 (HB1) | 0.9 | 4.8 | 218.0 |
| H2 (HA2) | 0.9 | 2.9 | 132.0 |
| H3 (HB2) | 0.9 | 3.3 | 109.0 |
| H4 (HA3) | 0.9 | 5.2 | -0.2 |
| H5 (HB3) | 0.9 | 6.1 | -300.0 |
