STRIP40 – Y-factor, warm-up (PWR0 blind)
General information
| Polarimeter | STRIP40 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federico Incardona |
| Description | Y-factor, warm-up (PWR0 blind) |
| PHSW state | 0101 |

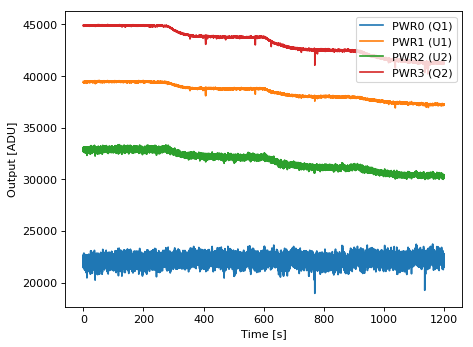

| Notes | The source data file was «SCI180202_164643 - STRIP40_Y-Factor_LB_20K_up_20-30-40-50_PS0101_02Feb2018.txt» (1801 kB) Temperatures of TC1 and TP2 have been estimated because relative thermometer were not working. Detector outputs are the mean values of Short Acquisitions with HEMTs turned off: "initial" and "final" |
| Author | fincardona |
| Date of creation | |
| JSON record | Link |
- Download data file (371.1 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.6 | -340.0 |
| H1 (HB1) | 0.9 | 4.8 | 218.0 |
| H2 (HA2) | 0.9 | 2.9 | 132.0 |
| H3 (HB2) | 0.9 | 3.3 | 109.0 |
| H4 (HA3) | 0.9 | 5.2 | -0.2 |
| H5 (HB3) | 0.9 | 6.1 | -300.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.8 | 20.0 | 27.9 | 15.0 | 25.3 | 20.0 | 15.8 |
|
| 20.0 | 25.8 | 30.0 | 36.9 | 15.0 | 25.3 | 20.0 | 15.8 |
|
| 20.0 | 25.8 | 40.0 | 48.4 | 15.0 | 25.3 | 20.0 | 15.8 |
|
| 20.0 | 25.7 | 50.0 | 59.9 | 15.0 | 25.3 | 20.0 | 15.8 |
|
