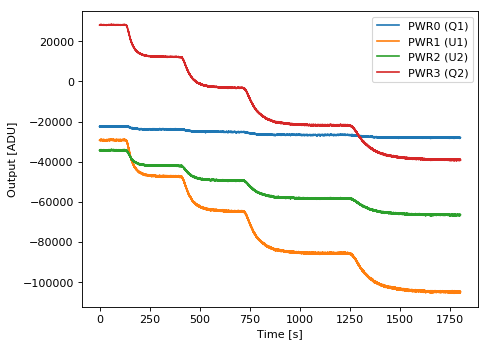

STRIP51 – Y-factor test
General information
| Polarimeter | STRIP51 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli |
| PHSW state | 0101 |
| Notes | The source data file was «SCI180212_141954 - STRIP51_Y-Factor__upLB-10-20-30-40-50_PS0101_12Feb2018.txt» (2903 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (584.9 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.55 | 241.0 |
| H1 (HB1) | 0.9 | 4.6 | 60.0 |
| H2 (HA2) | 0.9 | 7.38 | 506.0 |
| H3 (HB2) | 0.9 | 7.68 | 300.0 |
| H4 (HA3) | 0.9 | 5.22 | 0.0 |
| H5 (HB3) | 0.9 | 7.96 | 135.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.4 | 10.0 | 14.3 | 20.0 | 16.0 | 15.0 | 25.3 |
|
| 20.0 | 25.4 | 20.0 | 27.8 | 20.0 | 16.0 | 15.0 | 25.3 |
|
| 20.0 | 25.4 | 30.0 | 36.9 | 20.0 | 16.0 | 15.0 | 25.3 |
|
| 20.0 | 25.4 | 40.0 | 48.9 | 20.0 | 16.0 | 15.0 | 25.3 |
|
| 20.0 | 25.4 | 50.0 | 60.0 | 20.0 | 16.0 | 15.0 | 25.3 |
|
