STRIP40 – Bandpass characterization
General information
| Polarimeter | STRIP40 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Paola Battaglia |
| PHSW state | 0110 |
| Notes | The source data file was «SCI180220_152852 - STRIP40_Tcryo20K_RF_-40dBm_0110_20Feb2018.txt» (446 kB) |
| Author | paola |
| Date of creation | |
| JSON record | Link |
- Download data file (102.9 KB)

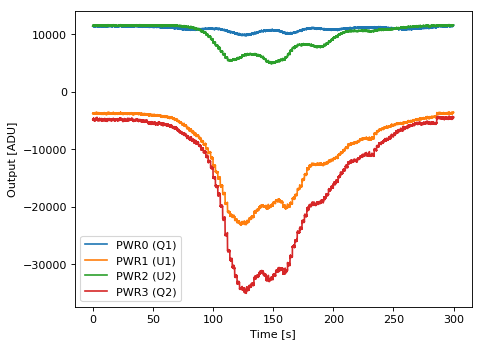

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.1 | -357.0 |
| H1 (HB1) | 0.9 | 4.1 | 203.0 |
| H2 (HA2) | 0.9 | 3.1 | 152.0 |
| H3 (HB2) | 0.9 | 2.6 | 135.0 |
| H4 (HA3) | 0.9 | 7.4 | 66.0 |
| H5 (HB3) | 0.9 | 7.6 | -145.0 |
