Strip Test Database

STRIP24 – Bandpass characterization Tcryo (PS0101 - PWR3 blind)

General information

Edit  Delete

Polarimeter STRIP24
Acquisition date
BandQ
Cryogenic?Yes
OperatorsPaola Battaglia, Silvia Caprioli, Claudio Pincella
DescriptionBandpass characterization Tcryo (PS0101 - PWR3 blind)
PHSW state0101
Notes

The source data file was «SCI170406_135322 - Qband24_Tcryo20K_RF -40dBm_0101_caso1_Polar_Tamb_06Apr2017.txt» (413 kB)

Authorpaola
Date of creation
JSON recordLink
ADC offsets
Detector outputs
PWR0 PWR1 PWR2 PWR3
1990 -3900 -950 800 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.7 7.6 300.0
H1 (HB1) 0.6 6.4 -43.0
H2 (HA2) 0.7 5.2 552.0
H3 (HB2) 0.7 5.5 300.0
H4 (HA3) 0.7 6.8 -130.0
H5 (HB3) 0.6 6.9 -390.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 24.0 20.0 23.2 22.9 13.5 15.0 24.5 Edit  Delete

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.66±0.15 8.09±0.30 JSON Download Edit  Delete

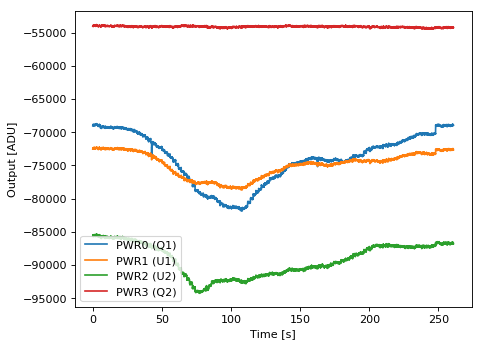

Spectrum
