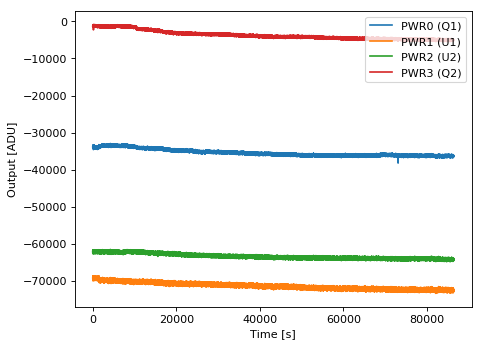

STRIP51 – Long acquisition
General information
| Polarimeter | STRIP51 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli |
| PHSW state | switching |
| Notes | The source data file was «SCI180213_130903 - STRIP51_1_f_PS_default_13Feb2018.txt» (153711 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (24.1 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.55 | 241.0 |
| H1 (HB1) | 0.9 | 4.6 | 60.0 |
| H2 (HA2) | 0.9 | 7.38 | 506.0 |
| H3 (HB2) | 0.9 | 7.68 | 300.0 |
| H4 (HA3) | 0.9 | 5.22 | 0.0 |
| H5 (HB3) | 0.9 | 7.96 | 135.0 |
