STRIP13 – Bandpass characterization Tcryo (PS0110 - PWR0 blind)
General information
| Polarimeter | STRIP13 |
| Acquisition date | |
| Band | W |
| Cryogenic? | Yes |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tcryo (PS0110 - PWR0 blind) |
| PHSW state | 0110 |

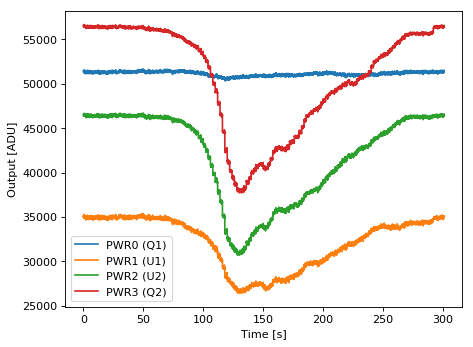

| Notes | The source data file was «SCI180227_153223 - STRIP13_Tcryo20K_RF_-40dBm_0110_V2_27Feb2018.txt» (444 kB) In order to obtain both a discrete leg balance and an acceptable gain, it has been necessary, after several attempts, to adopt a not usual settings, with very high drain currents and also a high 1 V drain voltage on the ahead HEMTs. At the same time it has been necessary to limit the drain voltage to 0.3 V on HEMT H4/Q3. No problems of interactions among the HEMTs. Detector output at P=0 showed to be substantially stable. The average of the initial and final values of the test session are here provided. |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (98.9 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 1.0 | 5.18 | -233.0 |
| H1 (HB1) | 1.0 | 3.62 | 579.0 |
| H2 (HA2) | 0.9 | 6.31 | 506.0 |
| H3 (HB2) | 0.9 | 14.11 | 460.0 |
| H4 (HA3) | 0.3 | 20.7 | 289.0 |
| H5 (HB3) | 0.9 | 17.43 | 368.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.6 | 20.0 | 27.9 | 20.0 | 15.8 | 15.0 | 25.3 |
|
