Strip Test Database

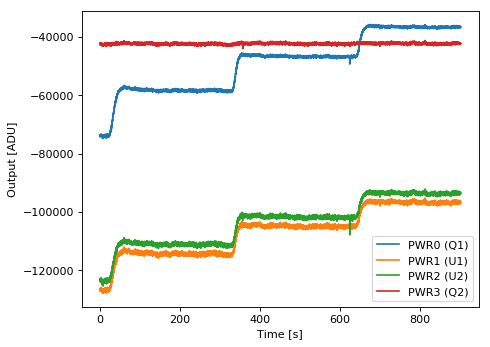

STRIP62 – Y-Factor test_down LB (PS0110-PWR3 blind)
General information
| Polarimeter | STRIP62 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Paola Battaglia, Claudio Pincella |
| Description | Y-Factor test_down LB (PS0110-PWR3 blind) |
| PHSW state | 0110 |
| Notes | The source data file was «SCI170525_131225 - STRIP62_Y-Factor_case3_Full JPL polariz__LB_30K_down_40-30-20-10_PS0110_25May2017.txt» (1473 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (310.4 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 3.93 | 17.0 |
| H1 (HB1) | 0.91 | 4.07 | 163.0 |
| H2 (HA2) | 1.21 | 15.16 | 247.0 |
| H3 (HB2) | 1.21 | 15.15 | 317.0 |
| H4 (HA3) | 0.93 | 9.3 | 85.0 |
| H5 (HB3) | 0.91 | 9.2 | 97.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.7 | 40.0 | 41.9 | 20.0 | 16.3 | 15.0 | 24.1 |
|
| 20.0 | 25.7 | 30.0 | 32.2 | 20.0 | 16.3 | 15.0 | 24.1 |
|
| 20.0 | 25.8 | 20.0 | 24.2 | 20.0 | 16.3 | 15.0 | 24.1 |
|
| 20.0 | 25.9 | 10.0 | 13.5 | 20.0 | 16.3 | 15.0 | 24.1 |
|
