STRIP62 – Bandpass characterization Tcryo (PS0110 - PWR0 blind)

General information

Edit  Delete

Polarimeter STRIP62
Acquisition date
BandQ
Cryogenic?Yes
OperatorsPaola Battaglia, Claudio Pincella
DescriptionBandpass characterization Tcryo (PS0110 - PWR0 blind)
PHSW state0110
Notes

The source data file was «SCI170525_111327 - STRIP62_Tcryo20K_RF_-40dBm_0110_case3_full-pol-JPL_23May2017.txt» (422 kB)

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1832 1838 1937 1845 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
47970 48300 50200 46400 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 3.93 17.0
H1 (HB1) 0.91 4.07 163.0
H2 (HA2) 1.21 15.16 247.0
H3 (HB2) 1.21 15.15 317.0
H4 (HA3) 0.93 9.3 85.0
H5 (HB3) 0.91 9.2 97.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 25.8 20.0 24.2 20.0 16.3 15.0 24.1 Edit  Delete

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.69±0.29 8.41±0.21 JSON Download Edit  Delete

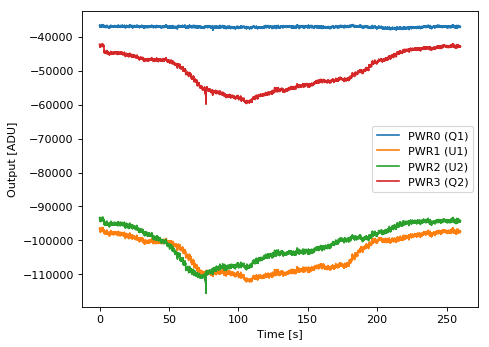

Spectrum
