Strip Test Database
STRIP45 – Tambient
General information
| Polarimeter | STRIP45 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Claudio Pincella |
| Description | Tambient |
| PHSW state | 0110 |
| Notes | The source data file was «SCI170113_013007 - Qband45_Tamb_RF 15dBm_0110_Vd=0.5V e 0.6V legs pari e disp_12Genuary17.txt» (388 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (78.3 KB)
ADC offsets

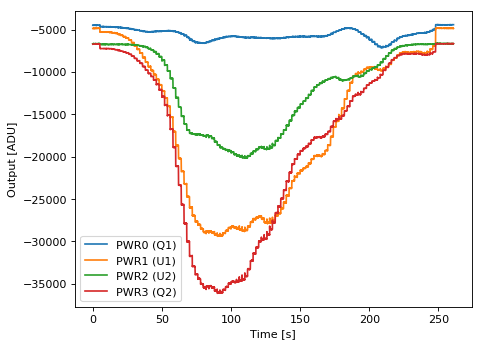

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.5 | 6.8 | -240.0 |
| H1 (HB1) | 0.6 | 6.6 | -100.0 |
| H2 (HA2) | 0.5 | 4.8 | 360.0 |
| H3 (HB2) | 0.6 | 7.0 | 180.0 |
| H4 (HA3) | 0.5 | 5.8 | 40.0 |
| H5 (HB3) | 0.6 | 6.6 | -80.0 |
