Strip Test Database
STRIP07 – Bandpass characterization Tambient (PS0101 - PWR3 blind)
General information
| Polarimeter | STRIP07 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS0101 - PWR3 blind) |
| PHSW state | 0101 |
| Notes | The source data file was «SCI170320_120110 - Qband07_Tamb_RF -15dBm_0101_caso base_20March17.txt» (358 kB) In spite of attempts carried out, the polarimeter showed a bad leg balance at ambient temperature. PS0101 phase switch position only has been assessed for all the attemps. Here reported is the so called "base case". |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (84.5 KB)
ADC offsets

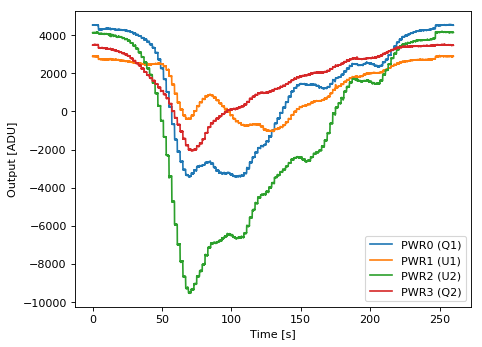

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.7 | 4.3 | 600.0 |
| H1 (HB1) | 0.7 | 7.0 | 80.0 |
| H2 (HA2) | 0.7 | 7.4 | 260.0 |
| H3 (HB2) | 0.6 | 4.9 | 0.0 |
| H4 (HA3) | 0.7 | 7.0 | -380.0 |
| H5 (HB3) | 0.7 | 6.1 | -100.0 |
