STRIP40 – Long acquisition 20Feb2018
General information
| Polarimeter | STRIP40 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Paola Battaglia |
| Description | Long acquisition 20Feb2018 |
| PHSW state | switching |

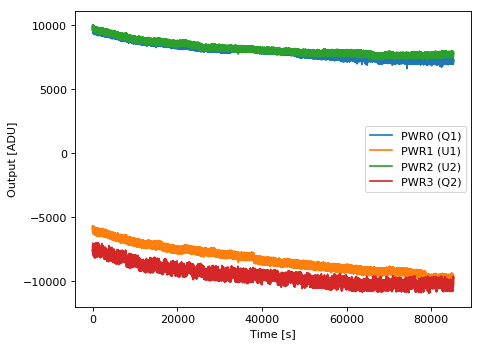

| Notes | The source data file was «SCI180220_165750 - STRIP40_1_f_PS-default_20Feb2018.txt» (128955 kB) Detector output at P=0 showed to be substantially stable. The average of the initial and final values of the test session are here provided. |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (21.8 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.1 | -358.0 |
| H1 (HB1) | 0.9 | 4.1 | 202.0 |
| H2 (HA2) | 0.9 | 3.1 | 153.0 |
| H3 (HB2) | 0.9 | 2.6 | 134.0 |
| H4 (HA3) | 0.9 | 7.45 | 65.0 |
| H5 (HB3) | 0.9 | 7.6 | -155.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 24.0 | 20.0 | 27.6 | 20.0 | 15.8 | 15.0 | 25.3 |
|
