Strip Test Database
STRIP55 – Bandpass characterization Tambient (PS1001 - PWR0 blind)
General information
| Polarimeter | STRIP55 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS1001 - PWR0 blind) |
| PHSW state | 1001 |
| Notes | The source data file was «SCI170210_015320 - Quiet03_Tamb_RF -10dBm_1001_base case with equal total Tr_09February17.txt» (368 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (74.0 KB)
ADC offsets

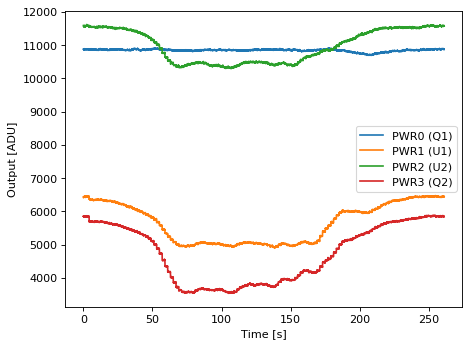

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.7 | 7.4 | -79.0 |
| H1 (HB1) | 0.7 | 7.54 | -60.0 |
| H2 (HA2) | 0.5 | 7.65 | -399.0 |
| H3 (HB2) | 0.5 | 8.84 | -405.0 |
| H4 (HA3) | 0.7 | 7.74 | 140.0 |
| H5 (HB3) | 0.7 | 7.1 | 150.0 |
