STRIP24 – Bandpass characterization Tambient (PS0110 - PWR0 blind)
General information
| Polarimeter | STRIP24 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS0110 - PWR0 blind) |
| PHSW state | 1001 |
| Notes | The source data file was «SCI170118_182257 - Qband24_Tamb_RF -15dBm_0110_Vd=0.7V tutti tranne H1 e H5 con Vd=0.6V_18January17.txt» (415 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (91.8 KB)
ADC offsets

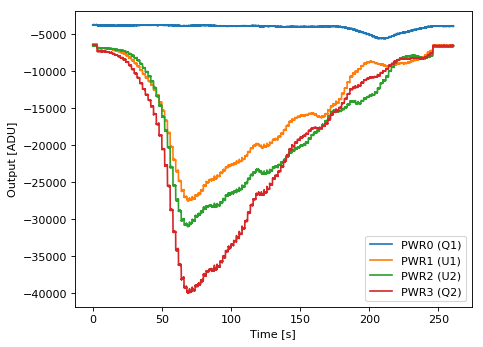

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.7 | 7.56 | 300.0 |
| H1 (HB1) | 0.6 | 6.38 | -43.0 |
| H2 (HA2) | 0.7 | 5.21 | 552.0 |
| H3 (HB2) | 0.7 | 5.51 | 300.0 |
| H4 (HA3) | 0.7 | 6.75 | -130.0 |
| H5 (HB3) | 0.6 | 6.86 | -390.0 |
