STRIP30 – Long acquisition - sliced data
General information
| Polarimeter | STRIP30 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Claudio Pincella |

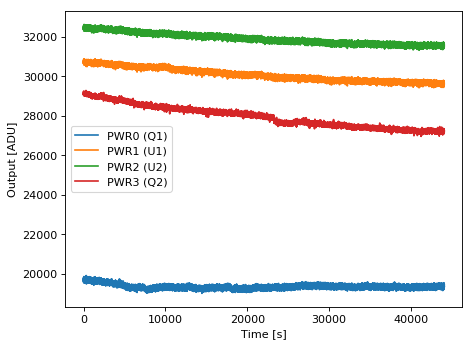

| Description | Long acquisition - sliced data |
| PHSW state | switching |
| Notes | The source data file was «SCI170927_154740 - STRIP30_1_f__PS-default_24hrs_27Sept2017_cutted.txt» (75294 kB) Same data of https://striptest.fisica.unimi.it/unittests/tests/201/ but rejecting the initial noisy part. |
| Author | fincardona |
| Date of creation | |
| JSON record | Link |
- Download data file (10.2 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 11.7 | -180.0 |
| H1 (HB1) | 0.9 | 9.3 | -105.0 |
| H2 (HA2) | 0.9 | 11.0 | 222.0 |
| H3 (HB2) | 0.9 | 11.0 | 326.0 |
| H4 (HA3) | 0.9 | 11.0 | -98.0 |
| H5 (HB3) | 0.9 | 4.0 | 154.0 |
