Strip Test Database

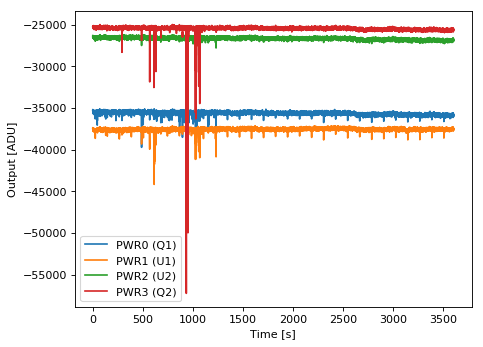

STRIP56 – Long acquisition
General information
| Polarimeter | STRIP56 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli, Federico Incardona, Claudio Pincella |
| PHSW state | switching |
| Notes | The source data file was «SCI170531_160802 - STRIP56_1_f__PS-default_Full JPL polariz_31May2017.txt» (6306 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (996.8 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 3.45 | 350.0 |
| H1 (HB1) | 0.9 | 3.53 | 370.0 |
| H2 (HA2) | 1.2 | 13.87 | -57.0 |
| H3 (HB2) | 1.2 | 13.0 | 80.0 |
| H4 (HA3) | 0.9 | 9.03 | 400.0 |
| H5 (HB3) | 0.9 | 8.56 | 320.0 |
