STRIP43 – Bandpass characterization Tcryo (PS0101 - PWR3 blind)

General information

Edit  Delete

Polarimeter STRIP43
Acquisition date
BandQ
Cryogenic?Yes
OperatorsFederico Incardona, Claudio Pincella
DescriptionBandpass characterization Tcryo (PS0101 - PWR3 blind)
PHSW state0101
Notes

The source data file was «SCI171013_093327 - STRIP43_Tcryo20K_RF_-40dBm_0101_13Oct2017.txt» (396 kB)

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1807 1870 1798 1852 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
103150 101500 103270 103700 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 4.45 137.0
H1 (HB1) 0.9 4.86 120.0
H2 (HA2) 0.9 5.8 204.0
H3 (HB2) 0.9 5.8 204.0
H4 (HA3) 0.9 6.0 40.0
H5 (HB3) 0.9 7.97 -300.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 26.4 20.0 27.7 20.0 16.8 15.0 24.6 Edit  Delete

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.16±0.09 6.65±0.35 JSON Download Edit  Delete

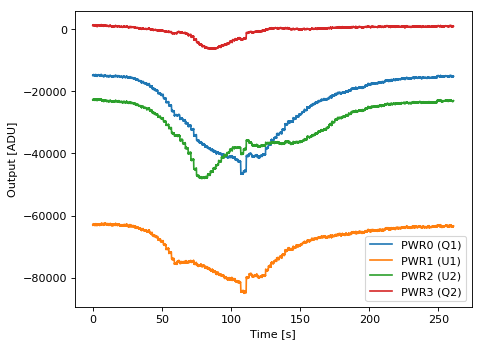

Spectrum
