Strip Test Database

STRIP81 – Bandpass characterization - PS 1001

General information

Edit  Delete

Polarimeter STRIP81
Acquisition date
BandW
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization - PS 1001
PHSW state1001
Notes

The source data file was «SCI180413_130442 - Wband78_Tcryo_RF+5dBm_1001_doppio-attenuatore_13Apr2018.txt» (856 kB)

Authorf.benedini
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1926 1972 1877 1963 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
84570 81800 85400 88080 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.511 5.2 175.0
H1 (HB1) 0.512 5.17 339.0
H2 (HA2) 0.512 5.175 154.0
H3 (HB2) 0.51 4.77 108.0
H4 (HA3) 0.512 5.175 93.0
H5 (HB3) 0.51 4.77 90.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 17.3 20.0 15.4 26.0 27.9 21.7 18.0 Edit  Delete

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
100.16±0.43 8.07±0.33 JSON Download Edit  Delete

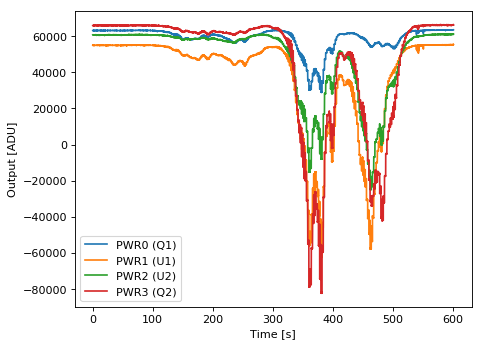

Spectrum
