STRIP43 – Bandpass characterization Tcryo (PS0110 - PWR0 blind)

General information

Edit  Delete

Polarimeter STRIP43
Acquisition date
BandQ
Cryogenic?Yes
OperatorsFederico Incardona, Claudio Pincella
DescriptionBandpass characterization Tcryo (PS0110 - PWR0 blind)
PHSW state0110
Notes

The source data file was «SCI171013_113356 - STRIP43_Tcryo20K_RF_-40dBm_0110_13Oct2017.txt» (408 kB)

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1775 1795 1809 1762 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
83120 84820 84880 85000 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 6.5 -292.0
H1 (HB1) 0.9 6.5 -332.0
H2 (HA2) 0.9 5.17 259.0
H3 (HB2) 0.9 3.9 197.0
H4 (HA3) 0.9 11.67 420.0
H5 (HB3) 0.9 12.75 429.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 26.4 20.0 27.7 20.0 16.8 15.0 24.6 Edit  Delete

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.19±0.29 6.84±0.12 JSON Download Edit  Delete

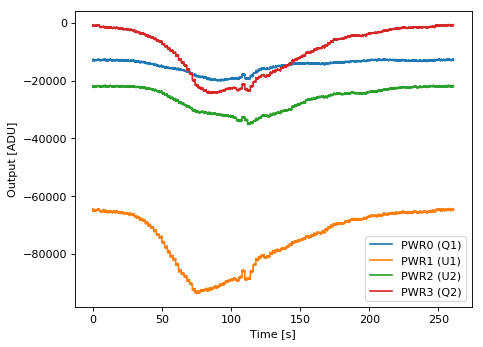

Spectrum
