STRIP81 – Bandpass characterization - PS 0101

General information

Edit  Delete

Polarimeter STRIP81
Acquisition date
BandW
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization - PS 0101
PHSW state0101
Notes

The source data file was «SCI180413_145229 - Wband78_Tcryo_RF+5dBm_0101_doppio-attenuatore_13Apr2018.txt» (854 kB)

Authorf.benedini
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1926 1972 1877 1963 Edit  Delete

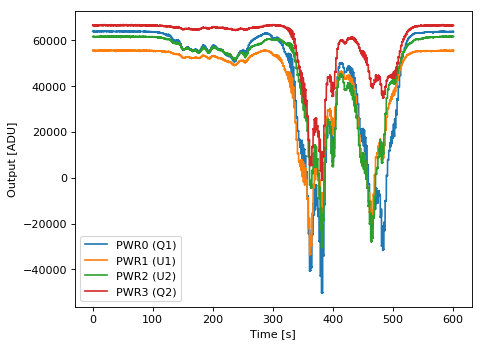

Detector outputs
PWR0 PWR1 PWR2 PWR3
84570 81800 85400 88080 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.511 5.2 175.0
H1 (HB1) 0.51 5.17 339.0
H2 (HA2) 0.512 5.17 154.0
H3 (HB2) 0.51 4.77 108.0
H4 (HA3) 0.512 5.17 93.0
H5 (HB3) 0.51 4.77 90.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 17.3 20.0 15.4 26.0 27.9 21.7 18.0 Edit  Delete

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
99.36±0.07 9.21±0.47 JSON Download Edit  Delete
Spectrum
