STRIP82 – Long acquisition - Vg +30mV H0

General information

Edit  Delete

Polarimeter STRIP82
Acquisition date
BandW
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionLong acquisition - Vg +30mV H0
PHSW stateswitching
Notes

The source data file was «SCI180418_152040 - STRIP_W85_1_f__PS-default_Polariz-US_15hours_18Apr2018.txt» (88059 kB)
Acquisition done with polarization settings different from the JPL's one: +30mV H0.

Authorf.benedini
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1925 1994 1882 1919 Edit  Delete

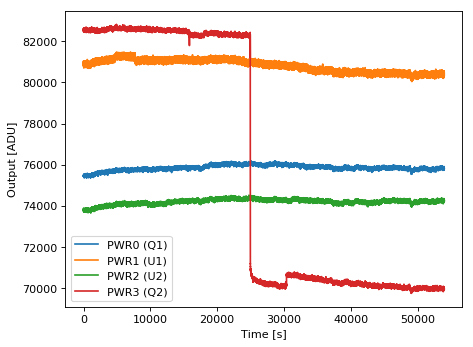

Detector outputs
PWR0 PWR1 PWR2 PWR3
102170 103380 103410 100520 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.323 5.15 268.0
H1 (HB1) 0.399 4.93 202.0
H2 (HA2) 0.309 3.75 258.0
H3 (HB2) 0.38 4.67 291.0
H4 (HA3) 0.309 3.75 229.0
H5 (HB3) 0.38 4.67 133.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 17.7 20.0 15.3 20.0 27.0 23.3 20.0 Edit  Delete

Reports

Noise temperatures
Bandpasses
Spectrum
Method αI αQ fkQ [mHz] WNQ [mK2/Hz] αU fkU [mHz] WNU [mK2/Hz] Details Report Actions
1.23031±0.00000 1.057±0.001 16.0±3.0 27.00±5.000 1.333±0.001 23.0±3.0 17.00±3.000 JSON Download Edit  Delete
