Strip Test Database

STRIP82 – Bandpass characterization - JPL - PS 1001

General information

Edit  Delete

Polarimeter STRIP82
Acquisition date
BandW
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization - JPL - PS 1001
PHSW state1001
Notes

The source data file was «SCI180418_100550 - Wband85_Tcryo_RF+2dBm_1001_doppio-attenuatore_18Apr2018.txt» (856 kB)

Authorf.benedini
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1925 1994 1882 1919 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
100500 102800 102280 100400 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.323 3.78 233.0
H1 (HB1) 0.399 4.97 202.0
H2 (HA2) 0.309 3.74 260.0
H3 (HB2) 0.38 4.64 288.0
H4 (HA3) 0.309 3.74 226.0
H5 (HB3) 0.38 4.64 128.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 17.7 20.0 15.3 20.0 27.0 23.3 20.0 Edit  Delete

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
97.42±0.67 5.70±0.85 JSON Download Edit  Delete

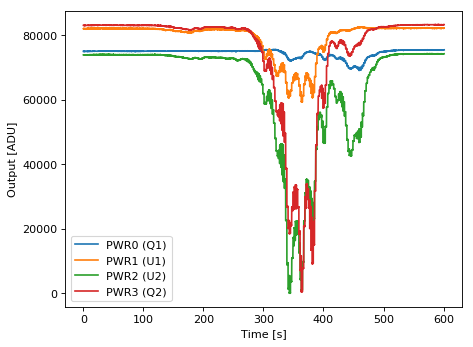

Spectrum
