STRIP73 – Y-factor - PS 0101 up - JPL Polarization

General information

Edit  Delete

Polarimeter STRIP73
Acquisition date
BandW
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionY-factor - PS 0101 up - JPL Polarization
PHSW state0101
Notes

The source data file was «SCI180423_095232 - STRIP_W31_Y-Factor_LB__up_20-30-40-50K_PS0101_23Apr2018.txt» (1317 kB)

Authorf.benedini
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1932 1989 1993 1933 Edit  Delete

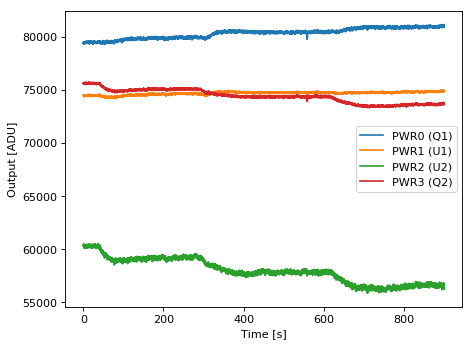

Detector outputs
PWR0 PWR1 PWR2 PWR3
98400 99840 100980 99000 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.288 2.3 343.0
H1 (HB1) 0.209 2.54 145.0
H2 (HA2) 0.32 6.01 291.0
H3 (HB2) 0.355 4.94 217.0
H4 (HA3) 0.32 6.01 291.0
H5 (HB3) 0.355 4.94 217.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 17.1 20.0 15.9 23.0 28.8 24.0 20.0 Edit  Delete
20.0 17.1 30.0 25.9 23.0 28.7 23.9 20.0 Edit  Delete
20.0 17.2 40.0 32.9 23.0 28.7 23.9 20.0 Edit  Delete
20.0 17.2 50.0 40.6 23.0 28.6 23.9 20.0 Edit  Delete

Reports

Noise temperatures
Method Tnoise [K] GQ1 [ADU/K] GU1 [ADU/K] GU2 [ADU/K] GQ2 [ADU/K] Details Report Action
non-linear fit 327.0±128.5 55±23 71±26 119±43 70±28 JSON Download Edit  Delete
Bandpasses
Spectrum
