Strip Test Database
STRIP70 – Long acquisition - repeated
General information
| Polarimeter | STRIP70 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federica Benedini |

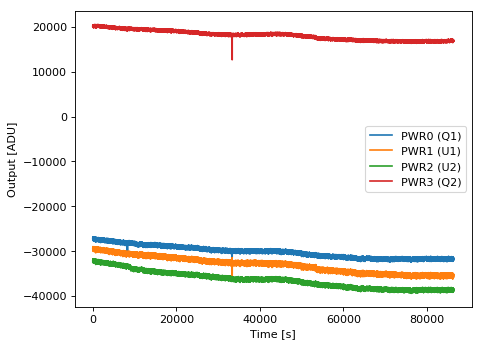

| Description | Long acquisition - repeated |
| PHSW state | switching |
| Notes | The source data file was «SCI180430_104141 - STRIP_70_1_f__PS-default_Polariz-JPL_24hours_30Apr2018.txt» (155821 kB) |
| Author | f.benedini |
| Date of creation | |
| JSON record | Link |
- Download data file (22.3 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.88 | 3.82 | 103.0 |
| H1 (HB1) | 0.91 | 5.59 | 124.0 |
| H2 (HA2) | 1.21 | 13.14 | 140.0 |
| H3 (HB2) | 1.2 | 19.23 | 272.0 |
| H4 (HA3) | 0.93 | 9.8 | 438.0 |
| H5 (HB3) | 0.92 | 13.32 | 319.0 |
