STRIP77 – Long acquisition

General information

Edit  Delete

Polarimeter STRIP77
Acquisition date
BandW
Cryogenic?Yes
OperatorsFederica Benedini
PHSW stateswitching
Notes

The source data file was «SCI180427_152019 - STRIP_W60_1_f__PS-default_Polariz-US_12hours_27Apr2018.txt» (64058 kB)

Authorf.benedini
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1877 1972 1869 1985 Edit  Delete

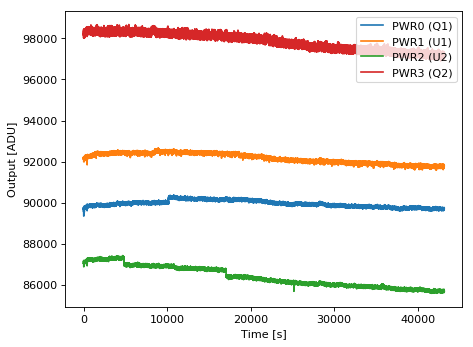

Detector outputs
PWR0 PWR1 PWR2 PWR3
104040 100730 97120 101480 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.403 4.77 154.0
H1 (HB1) 0.496 5.12 227.0
H2 (HA2) 0.401 5.28 125.0
H3 (HB2) 0.544 4.56 89.0
H4 (HA3) 0.401 5.28 268.0
H5 (HB3) 0.544 4.56 213.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 17.1 20.0 15.6 23.0 28.3 24.1 20.0 Edit  Delete

Reports

Noise temperatures
Bandpasses
Spectrum
Method αI αQ fkQ [mHz] WNQ [mK2/Hz] αU fkU [mHz] WNU [mK2/Hz] Details Report Actions
0.87741±0.00001 1.330±0.060 1.0±2.0 100.00±100.000 1.940±0.040 0.6±0.9 50.00±40.000 JSON Download Edit  Delete
