Strip Test Database

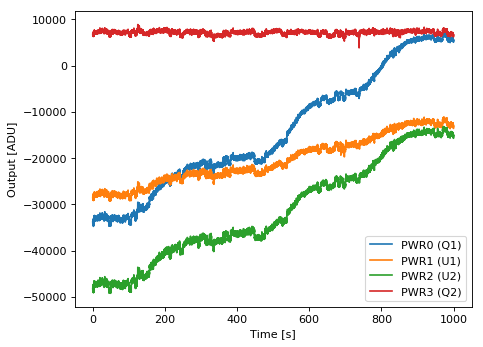

STRIP61 – Y-factor - PS 0110 down - repeated
General information
| Polarimeter | STRIP61 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federica Benedini |
| Description | Y-factor - PS 0110 down - repeated |
| PHSW state | 0110 |
| Notes | The source data file was «SCI180504_132237 - STRIP61_Y-Factor_LB_down_50-40-30-20K_0110_04May2018.txt» (1544 kB) |
| Author | f.benedini |
| Date of creation | |
| JSON record | Link |
- Download data file (346.6 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 3.02 | 174.0 |
| H1 (HB1) | 0.9 | 3.06 | 337.0 |
| H2 (HA2) | 1.21 | 9.95 | 425.0 |
| H3 (HB2) | 1.2 | 12.0 | 510.0 |
| H4 (HA3) | 0.95 | 6.98 | 453.0 |
| H5 (HB3) | 0.92 | 8.07 | 173.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 18.2 | 50.0 | 31.5 | 27.3 | 25.0 | 25.0 | 22.4 |
|
| 20.0 | 18.1 | 40.0 | 26.8 | 27.3 | 25.0 | 25.0 | 22.4 |
|
| 20.0 | 18.1 | 30.0 | 17.5 | 27.3 | 25.0 | 25.0 | 22.4 |
|
| 20.0 | 18.1 | 20.0 | 13.3 | 27.3 | 25.0 | 25.0 | 22.4 |
|
