STRIP73 – Long acquisition (24 h) - STRIP polarization case2

General information

Edit  Delete

Polarimeter STRIP73
Acquisition date
BandW
Cryogenic?Yes
OperatorsFederica Benedini, Claudio Pincella
DescriptionLong acquisition (24 h) - STRIP polarization case2
PHSW stateswitching
Notes

The source data file was «SCI180424_163054 - STRIP_W31_1_f__PS-default_Polariz-caso2_24hours_24Apr2018.h5» (24844 kB)

Authortomasi
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1932 1989 1993 1933 Edit  Delete

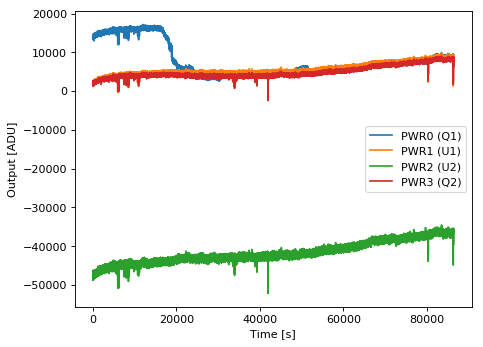

Detector outputs
PWR0 PWR1 PWR2 PWR3
100430 98220 97900 98300 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.7 4.66 334.0
H1 (HB1) 0.7 7.79 153.0
H2 (HA2) 0.37 6.25 280.0
H3 (HB2) 0.405 5.21 210.0
H4 (HA3) 0.37 6.25 280.0
H5 (HB3) 0.405 5.21 210.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 17.1 20.0 15.9 23.0 28.8 24.0 20.0 Edit  Delete

Reports

Noise temperatures
Bandpasses
Spectrum
Method αI αQ fkQ [mHz] WNQ [mK2/Hz] αU fkU [mHz] WNU [mK2/Hz] Details Report Actions
1.10913±0.00000 1.051±0.000 300.0±40.0 4.20±0.500 0.905±0.000 2700.0±600.0 6.00±1.000 JSON Download Edit  Delete
