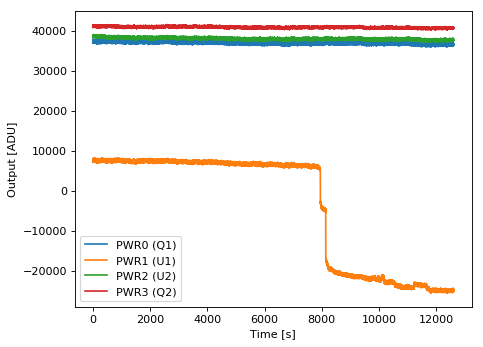

STRIP54 – Long acquisition - repeated
General information
| Polarimeter | STRIP54 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federica Benedini |
| Description | Long acquisition - repeated |
| PHSW state | switching |
| Notes | The source data file was «SCI180507_082946 - STRIP54_1_f__PS-default_3.5hours_07May2018.txt» (21381 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (3.7 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 3.25 | 0.0 |
| H1 (HB1) | 0.9 | 3.02 | 143.0 |
| H2 (HA2) | 1.2 | 13.9 | 193.0 |
| H3 (HB2) | 1.21 | 12.93 | 373.0 |
| H4 (HA3) | 0.91 | 9.1 | 393.0 |
| H5 (HB3) | 0.9 | 8.08 | 400.0 |
