STRIP54 – Bandpass characterization - PS0101 - repeated

General information

Edit  Delete

Polarimeter STRIP54
Acquisition date
BandQ
Cryogenic?Yes
OperatorsFederica Benedini
DescriptionBandpass characterization - PS0101 - repeated
PHSW state0101
Notes

The source data file was «SCI180507_072708 - STRIP54_Tcryo_RF-40dBm_0101__07May2018.txt» (443 kB)

Polarimeter temperature set to 25K, to maintain control during Y-Factor tests.

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1946 1932 1893 1820 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
100260 99800 101130 99830 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 3.25 0.0
H1 (HB1) 0.9 3.02 143.0
H2 (HA2) 1.2 13.9 193.0
H3 (HB2) 1.21 12.93 373.0
H4 (HA3) 0.91 9.1 393.0
H5 (HB3) 0.9 8.08 400.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 17.4 20.0 13.6 27.8 25.0 25.0 22.1 Edit  Delete

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.27±0.26 8.56±0.32 JSON Download Edit  Delete

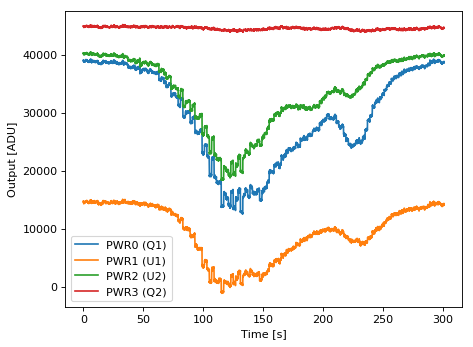

Spectrum
