Strip Test Database
STRIP61 – Long acquisition - repeated
General information
| Polarimeter | STRIP61 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federica Benedini, Claudio Pincella |

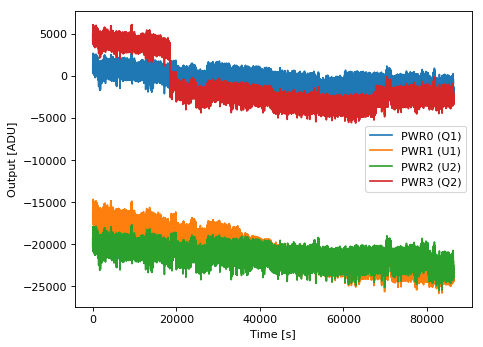

| Description | Long acquisition - repeated |
| PHSW state | switching |
| Notes | The source data file was «SCI180504_140251 - STRIP61_1_f__PS-default_24hours_04May2018.txt» (153173 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (26.8 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 3.02 | 174.0 |
| H1 (HB1) | 0.9 | 3.06 | 337.0 |
| H2 (HA2) | 1.21 | 9.95 | 425.0 |
| H3 (HB2) | 1.2 | 12.0 | 510.0 |
| H4 (HA3) | 0.95 | 6.98 | 453.0 |
| H5 (HB3) | 0.92 | 8.07 | 173.0 |
