STRIP64 – Bandpass characterization Tcryo repeated (PS0101 - PWR3 blind)

General information

Edit  Delete

Polarimeter STRIP64
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization Tcryo repeated (PS0101 - PWR3 blind)
PHSW state0101
Notes

The source data file was «SCI180508_100617 - STRIP64_Tcryo_RF-40dBm_0101__08May2018.txt» (460 kB)

Reference temperature for the polarimeter has been set to 22.5K instead of 20K, to maintain its control during Y-Factor tests

High noise level is present on the detector output and this issue has been analyzed more deeply in two steady state tests.

Conclusion is that the behaviour could improve when using the actual chain without T-Magic, therefore with feed-horn and OMT.

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1871 1854 1882 2009 Edit  Delete

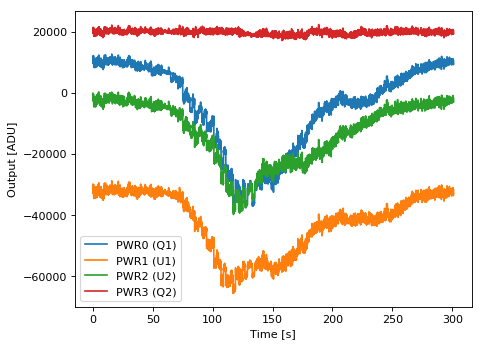

Detector outputs
PWR0 PWR1 PWR2 PWR3
97100 97330 98900 99820 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.91 3.03 430.0
H1 (HB1) 0.91 3.05 497.0
H2 (HA2) 1.21 11.8 48.0
H3 (HB2) 1.21 11.08 124.0
H4 (HA3) 0.91 7.3 463.0
H5 (HB3) 0.91 7.05 321.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 17.5 20.0 13.2 25.5 22.5 23.5 20.9 Edit  Delete

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.07±0.10 7.97±0.10 JSON Download Edit  Delete
Spectrum
