STRIP64 – Y-Factor test_repeated_down LB (PS0110-PWR3 blind)
General information
| Polarimeter | STRIP64 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Claudio Pincella |
| Description | Y-Factor test_repeated_down LB (PS0110-PWR3 blind) |
| PHSW state | 0110 |

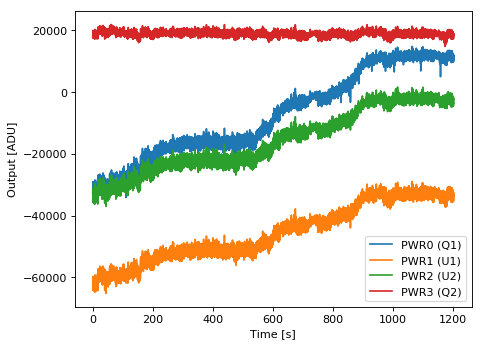

| Notes | The source data file was «SCI180508_121618 - STRIP64_Y-Factor_LB_down_50-40-30-20K_0110_08May2018.txt» (1869 kB) High noise level is present on the detector output and this issue has been analyzed more deeply in two steady state tests. Conclusion is that the behaviour could improve when using the actual chain without T-Magic, therefore with feed-horn and OMT. |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (482.5 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.91 | 3.03 | 430.0 |
| H1 (HB1) | 0.91 | 3.05 | 497.0 |
| H2 (HA2) | 1.21 | 11.8 | 48.0 |
| H3 (HB2) | 1.21 | 11.08 | 124.0 |
| H4 (HA3) | 0.91 | 7.3 | 463.0 |
| H5 (HB3) | 0.91 | 7.05 | 321.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 17.5 | 50.0 | 31.45 | 25.5 | 22.5 | 23.5 | 20.9 |
|
| 20.0 | 17.5 | 40.0 | 26.7 | 25.5 | 22.5 | 23.5 | 20.9 |
|
| 20.0 | 17.5 | 30.0 | 17.4 | 25.5 | 22.5 | 23.5 | 20.9 |
|
| 20.0 | 17.5 | 20.0 | 13.2 | 25.5 | 22.5 | 23.5 | 20.9 |
|
