STRIP30 – Long acquisition repeated 10May2018

General information

Edit  Delete

Polarimeter STRIP30
Acquisition date
BandQ
Cryogenic?Yes
OperatorsFederica Benedini, Claudio Pincella
DescriptionLong acquisition repeated 10May2018
PHSW stateswitching
Notes

The source data file was «SCI180510_105124 - STRIP30_1_f__PS-default_18hours_10May2018.txt» (110311 kB)

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1870 1807 1855 1868 Edit  Delete

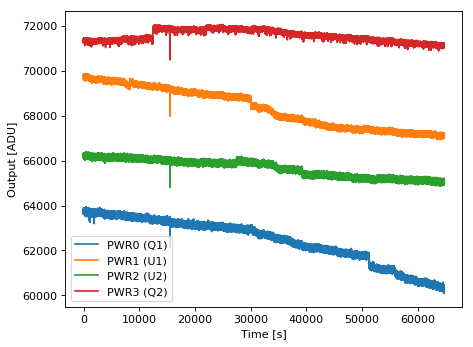

Detector outputs
PWR0 PWR1 PWR2 PWR3
100950 102130 102930 98700 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 11.7 -180.0
H1 (HB1) 0.9 9.27 -107.0
H2 (HA2) 0.9 11.07 221.0
H3 (HB2) 0.9 11.05 324.0
H4 (HA3) 0.9 11.02 -98.0
H5 (HB3) 0.9 4.06 151.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 19.0 20.0 13.3 25.1 22.5 22.6 20.0 Edit  Delete

Reports

Noise temperatures
Bandpasses
Spectrum
Method αI αQ fkQ [mHz] WNQ [mK2/Hz] αU fkU [mHz] WNU [mK2/Hz] Details Report Actions
0.72548±0.00000 0.943±0.003 27.0±4.0 2.90±0.300 0.811±0.003 35.0±5.0 2.40±0.200 JSON Download Edit  Delete
