STRIP71 – Y-Factor test - up LB (PS0101 - pol JPL)
General information
| Polarimeter | STRIP71 |
| Acquisition date | |
| Band | W |
| Cryogenic? | Yes |
| Operators | Federica Benedini |
| Description | Y-Factor test - up LB (PS0101 - pol JPL) |
| PHSW state | 0101 |
| Notes | The source data file was «SCI180523_095914 - STRIP_W23_Y-Factor_LB__up_20-30-40K_PS0101_23May2018.txt» (1375 kB) Cross-guide’s heater was disconnected, so it wasn’t possible to control TC2 or TC1. TC2 was disconnected too. In conclusion, no control on the cross-guide, but the test is considered to be fully valid. Polarization procedure has been repeated after refill of the cooler's gas. Therefore, there are slight differences for the channel offsets and offsets at HEMTs turned off. Offsets inserted are the ones just recorded before of this "up test" |
| Author | claudio |
| Date of creation | |
| JSON record | Link |

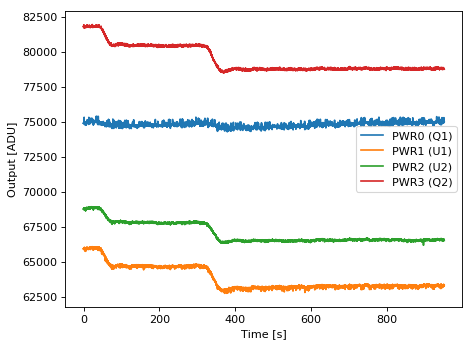

- Download data file (304.7 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.501 | 4.1 | 341.0 |
| H1 (HB1) | 0.501 | 5.13 | 369.0 |
| H2 (HA2) | 0.44 | 11.66 | 509.0 |
| H3 (HB2) | 0.401 | 13.21 | 518.0 |
| H4 (HA3) | 0.44 | 11.66 | 509.0 |
| H5 (HB3) | 0.401 | 13.21 | 518.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 19.5 | 20.0 | 15.3 | 24.0 | 18.8 | 13.3 | 11.0 |
|
| 20.0 | 19.5 | 30.0 | 25.2 | 24.0 | 18.8 | 13.3 | 11.0 |
|
| 20.0 | 19.5 | 40.0 | 32.8 | 24.0 | 18.8 | 13.3 | 11.0 |
|
