STRIP74 – Bandpass characterization - PS 1001

General information

Edit  Delete

Polarimeter STRIP74
Acquisition date
BandW
Cryogenic?Yes
OperatorsFederica Benedini
DescriptionBandpass characterization - PS 1001
PHSW state1001
Notes

The source data file was «SCI180528_104704 - Wband36_Tcryo_RF-2dBm_1001_28May2018.txt» (877 kB)

Authorf.benedini
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
2017 2064 2003 1969 Edit  Delete

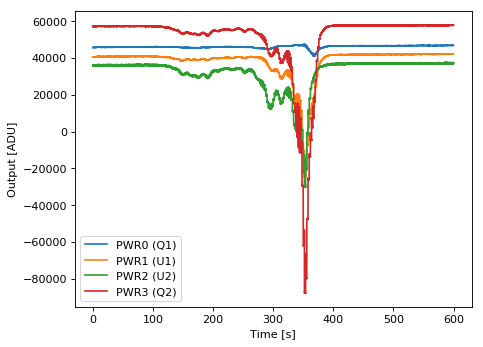

Detector outputs
PWR0 PWR1 PWR2 PWR3
98340 99780 97200 98720 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.185 3.0 291.0
H1 (HB1) 0.213 3.4 309.0
H2 (HA2) 0.348 7.25 581.0
H3 (HB2) 0.371 6.9 730.0
H4 (HA3) 0.348 7.25 581.0
H5 (HB3) 0.371 6.9 730.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 19.5 20.0 15.5 24.0 13.7 20.0 17.5 Edit  Delete

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
95.95±0.64 3.65±1.10 JSON Download Edit  Delete
Spectrum
