STRIP75 – Y-factor - PS 0101 up

General information

Edit  Delete

Polarimeter STRIP75
Acquisition date
BandW
Cryogenic?Yes
OperatorsFederica Benedini
DescriptionY-factor - PS 0101 up
PHSW state0101
Notes

The source data file was «SCI180530_100642 - STRIP_W46_Y-Factor_LB__up_20-30-40-50K_PS0101_30May2018.txt» (1931 kB)

Authorf.benedini
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1960 2023 2104 2002 Edit  Delete

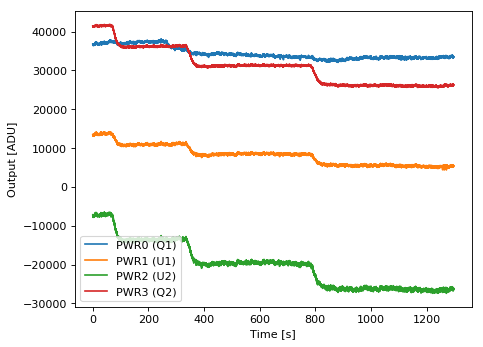

Detector outputs
PWR0 PWR1 PWR2 PWR3
107500 103850 104140 105200 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.499 4.96 73.0
H1 (HB1) 0.504 5.24 199.0
H2 (HA2) 0.411 6.19 532.0
H3 (HB2) 0.412 4.26 496.0
H4 (HA3) 0.411 6.19 532.0
H5 (HB3) 0.412 4.26 496.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 16.4 20.0 15.2 23.0 18.3 20.5 17.5 Edit  Delete
20.0 16.4 30.0 23.4 23.0 18.3 20.5 17.5 Edit  Delete
20.0 16.5 40.0 31.1 23.0 18.4 20.5 17.5 Edit  Delete
20.0 16.6 50.0 38.9 23.0 18.4 20.5 17.5 Edit  Delete

Reports

Noise temperatures
Method Tnoise [K] GQ1 [ADU/K] GU1 [ADU/K] GU2 [ADU/K] GQ2 [ADU/K] Details Report Action
non-linear fit 86.1±10.1 604±79 837±75 1071±97 548±66 JSON Download Edit  Delete
Bandpasses
Spectrum
