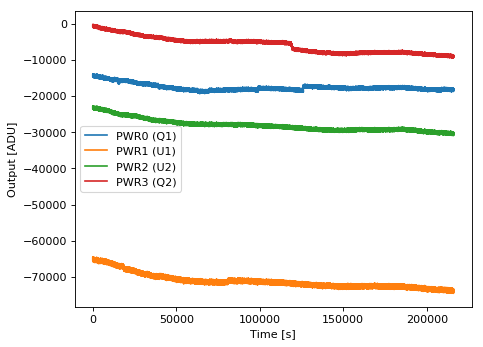

STRIP43 – Long acquisition
General information
| Polarimeter | STRIP43 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federico Incardona, Claudio Pincella |
| PHSW state | switching |
| Notes | The source data file was «SCI171013_142311 - STRIP43_1_f__PS-default_12hours_Oct2017.h5» (62159 kB) |
| Author | fincardona |
| Date of creation | |
| JSON record | Link |
- Download data file (60.7 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.45 | 137.0 |
| H1 (HB1) | 0.9 | 4.86 | 120.0 |
| H2 (HA2) | 0.9 | 5.8 | 204.0 |
| H3 (HB2) | 0.9 | 5.8 | 204.0 |
| H4 (HA3) | 0.9 | 6.0 | 40.0 |
| H5 (HB3) | 0.9 | 7.97 | -300.0 |
